Fujifilm Products

      1. Computed radiography
      2. Radiography Printers
      3. Conventional X-Ray Film Processors
      4. Direct Radiography
      5. X-Ray General Radiography
      6. X-Ray Mobile Digital
      7. Mammography Digital



Computed Radiography

PROTECT ONE Plusfuji1

High-resolution one-stacker FCR with 20 pixel/mm sampling pitch for digital mammography and paediatric imaging

The Dual-Side Imaging Plate (IP) Reading technology allows　the use of a thicker phosphor layer on the transparent base,　thereby increasing DQE (Detective Quantum Efficiency) by　collecting the emissions from both sides of the IP

High-precision Images for various needs

As High DQE is realized by the Fujifilm’s Dual-side Reading Technology, with its low dose exposure, the FCR PROFECT CS Plus and the FCR PROFECT ONE plus relieve patients’ burden during X-ray examinations. Incorporated with the FUJIFILM proprietary image processing technology (Image Intelligence™), high resolution image reading with the 20 pixel/mm sampling pitch delivers excellent quality images in versatile diagnosis areas.

For example, they are suitable for diagnosis areas requiring high-quality images even with low dose exposure, such as mammography, pediatrics, follow-ups and tests using a catheter

 Capsula XLIIfuji2

Compact frame and vertical cassette insertion for effective work space

Compact with high efficiency

FCR CAPSULA XLII enables extremely high throughput of up to approx. 94IPs/hr.* and the time to display the image on the CR Console monitor is approx. 23 seconds, in spite of its compactness.

All-in-one unit for all diagnostic imaging needs

FCR CAPSULA XLII can be optionally upgraded for 50-micron reading with the single-side HR-IP and new IP cassettes type CH to visualize more fine and minute structures for mammography** and paediatric imaging. In addition, three types of IP cassettes (Type CC, LC & CH) can be used for various imaging needs, as well as pantomography (15 x 30 cm).



FCR Prima T2fuji3

High-speed processing

FCR PRIMA T is a table-top reader unit which boasts a world-class high processing speed of 57 IPs / hour. With the optional Upgrade Kit this speed can be increased still further to 67 IPs / hour. As with all Fujifilm equipment FCR PRIMA T is easy to operate. It will help reduce patient waiting time and greatly increase the efficiency of examination workflow.



Space-saving design

FCR PRIMA T, with its light, compact, table top design is Fujifilm’s first FCR model of this type. It can be placed on a desk or shelf or anywhere space is limited. As this is a fully digital reader neither a darkroom nor automatic processor are required. FCR PRIMA T can always be installed in the space vacated by a chemistry based processor.



Radiography Printers

DRYPIX Plusfuji4

      • Adaptable to broader needs from small clinics to general hospitals
      • Superb capability realized by high maximum density (enables mammography use)
      • Available in a wide range of film sizes  – 3 sizes online
      • Fits anywhere, allowing maximum freedom of placement within the medical facilities
      • The DRYPIX Plus combines proven reliability and convenience with remarkable operating efficiency, all in a compact body. Boasting unrivalled image quality, networkability, backup security and accessible price, DRYPIX Plus is the ideal imager for small- to medium-sized hospitals.

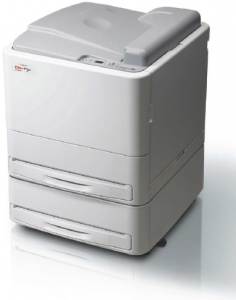

DRYPIX Smartfuji5

      • Compact dimensions hide generous potential
      • The latest addition to the DPX family, new DRYPIX SMART is ideal for medium-size hospitals, combining proven reliability and convenience with remarkable operating efficiency, all in a compact body. Features including unrivalled image quality, networkability and backup security.
      • DRYPIX SMART a welcome addition to any hospital department
      • Throughput (14”x17”) 80 films per hour

 DRYPIX Litefuji6

      • Uses the revolutionary DI-HT long-life film which is available in 35 x 43 (14 x 17) and 26 x 36, 20 x 25 (8 X 10) size to meet diverse demands.
      • The system can implement up to two magazines.
      • 2 trays: 530x590x365mm
      • Extremely compact in design requiring only 0.25 m2 (with small magazine) and an unprecedented quiet operation.
      • The DRYPIX Lite is a high-speed, high-resolution imager that features all the superior characteristics of imagers, and more. It is the optimal choice in both small clinical settings and as part of a dispersed system in large hospitals.

 Conventional X-Ray Film Processors

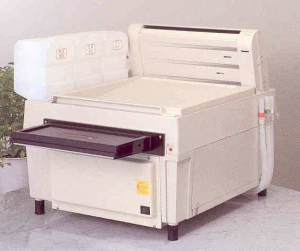

FPM 100-Afuji7

The FPM 100-A : High- quality processing from a reliable compact machine that’s easy to maintain and easy to use

Three- minute Film processing

The FPM100-A saves valuable time by developing and drying film in just three minutes. And the feed tray with the light tight cover simplifies operation, thus reducing darkroom time.

Easy Installation

The FPM100-A is so compact that it can be installed on any darkroom table top. And there’s no need for any water connection or chemical mixing, thanks to the FPM-100A’s system of self contained replenisher bottles.

Safe and simple Maintenance

A newly developed rack system reduces maintenance and servicing while ensuring reliable film transport. Quiet operation on a standard domestic 220-240V AC power supply is provided by the FPM-100A’s low noise drying fan. And the FPM100-A’s self-diagnostic sensors, built-in electrical breaker and the thermostat assure users of safety and reliability.

Direct Radiography

FDR D-EVO wiredfuji8

      • Same as Cassette Size
      • Perfect Fit for Easy Retrofits
      • “Automatic X-ray Detection” named “SmartSwitch” means no X-ray generator connection required
      • True 14×17˝
      • Thin – only 0.5˝ thick
      • Lightest FPD of its size, Only 6 lbs
      • Exceptional Speed, 5s Preview, 9s cycle
      • Image Quality  :Patented ISS Technology
      • Samples detector output where signal is strongest & shortest resulting in

Sharper images with highest DQE 29% of any GOS scintillator

      • Fujifilm‘s Image Intelligence Processing & Enhancement
      • Detachable Cord
      • Easy Positioning & Fast and Reliable Imaging



FDR D-EVO wirelessfuji9

      • ISS (Irradiation Side Sampling) method
      • The same external dimension as  conventional FCR cassette
      • “Automatic X-ray Detection” named “SmartSwitch” means no X-ray generator connection required
      •  Light-weighted but heavy loadability
      • Save the space & minimize the workflow
      • Improvement of cassette handling.



FDR D-EVO Flexfuji10

      • Complete Wireless Connection
      • D-EVO , Utility Box and Console Advance
      • “Automatic X-ray Detection” named “SmartSwitch”
      •  no need to connect X-ray signals
      • All powered by batteries
      • Simpler Configuration, Higher portability
      • Image Preview approx. 2sec
      • For all D-EVO wireless panels
      • Up to 3 panels at same time.



X-Ray General Radiography

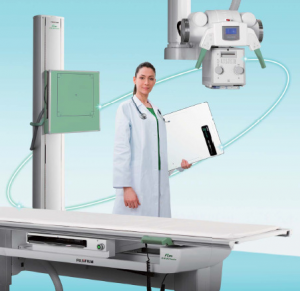

D- EVO Suitefuji11

      • Ceiling tube support — lightweight and ergonomically designed
      • Upright stand — variety of examinations
      • Table — flexibility for patient positioning
      • High frequency generator and X-ray tube — meet the high requirement for fast throughput and high quality
      • DR system for general radiography — high image quality is maintained combining with Fujifilm’s “Image Intelligence™” technology  DR System for General Radiography — Light-weight, Cassette Sized Flat Panel Sensor
      • ISS (Irradiation Side Sampling) method

FDR Acceleratefuji12

      • The new pinnacle in diagnostic imaging from Fujifilm.
      • New direct conversion 43×43 flat panel detector (FPD) with high DQE & MTF.
      • 5-axis full motorized ceiling tube support with various automated functions.
      • Newly developed DR/CR compatible console provides control from one.
      • Wide range of movement for various examinations
      • Light-weight Ceiling Suspension System
      • Tilting Upright X-ray Stand
      • Flexible X-ray Table
      • 80kW High Voltage Generator



X-Ray Mobile – Digital



 FCR GO2fuji13



Drive as you like

The dual motor drive provides smooth and easy steering and comes with four acceleration modes as standard. Designed to be silent you can happily move the unit around at night. A touch sensor on the front of the unit stops the machine automatically if it makes contact with an obstacle.

Position it as you need

The telescopic arm adjusts easily to the precise, desired position. The arm also has extended horizontal and vertical movement letting you use longer exposure distances for high quality images. The X-ray tube also moves both horizontally and vertically, allowing desired Positioning even when the arm is in a diagonal position.

Lightweight, durable and various-sized IP cassettes

Mamography- Digital

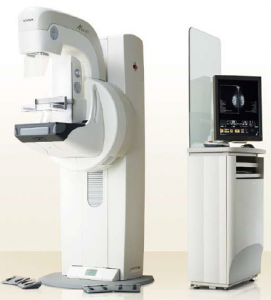

Amuletfuji14

Digital mammography evolves enhanced usability and examination comfort

The Amulet’s new functionality and ergonomic design achieves improved usability and a more comfortable examination experience whilst maintaining superior image quality.

      • Top quality images from a flat panel featuring 50 µm resolution
      • Mammography with greater comfort and improved usability
      • Specially designed AWS (Acquisition Workstation)
      • Function for stereotactic biopsy examinations (optional only for AMULET f)

Incorporating Fujifilm’s patented Direct Optical Switching Technology

AMULET f and AMULET s use a direct conversion X-ray sensor with excellent conversion efficiency. The panel comprises of a dual layer of a-Se, employing Fujifilm’s proprietary Direct Optical Switching technology, instead of thin film transistors (TFTs), to directly read the signal more efficiently. This technology ensures lower image noise and allows a pixel size of just 50 µm to be achieved as well as permitting shorter inter-exposure times (15 seconds). AMULET f and AMULET s provide high resolution images, high DQE and optimise workflow.



3D Mamography Viewerfuji15



Fujifilm’s 3D mammography creates 3D images by using two high resolution images taken from different angles. One of these images is a conventional 2D image. The images are presented on a special viewer. 3D images enable the internal anatomical breast structures to be identified more clearly than in a 2D image due to tissue separation and micro calcifications stratification. With this system, it is expected that image interpretation is as quick or even quicker than 2D mammography and false positives are reduced.

* Adaptable to AMULET only.



DRGEM Products

Digital Radiography

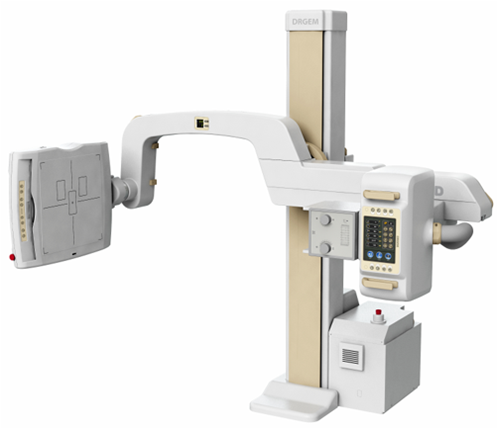

Models: DIA 4A, 5A, 6A, 8ADRGEM1

40kW, 52kW, 68kW, 82kW

500mA, 630mA, 800mA, 1000mA





• A fully automatic DR system providing whole diagnostic radiographic studies with moderate budgets and small spaces
• Outstanding image quality based on digital flat-panel detector and digital image processing which optimized for each projections
• CsI (Cesium Iodide) screen features 20% lower dose than GOS screen
• Trustworthy x-ray source: High quality x-ray tube assembly and high frequency x-ray generator
• Automatic motorized radiographic stand, remote controller, mobile patient table
• Motorized collimator automatically controls x-ray field size corresponds to varying SID
• Two removable high resolution grids and AEC sensor are provided as standard
• Touch screen graphic interfaces are adopted at radiographic stand controller and x-ray controller
• Imaging software with convenient user interface and various functions
• DICOM 3.0 networking interface includes Work list, Print, Store and Query for integration with any PACS or RIS
• Just selection of an anatomical study on the imaging software automatically sets up followings
• Pre-programmed exposure technique setting of x-ray generator
• Automatic radiographic stand positioning
• Automatic x-ray collimation
• Digital image processing for selected study.

Conventional Radiography [Upgradable to Digital]

Models: GXR-32S, 40S, 52S, 68S, 82SDRGEM2

32kW, 40kW, 52kW, 68kW, 82kW
400mA, 500mA, 630mA, 800mA, 1000mA

• The new designed GXR diagnostic X-ray system provides an analogue radiographic room that perfectly fits your workflow and budget, but it can be easily upgraded to DR system with the help of DR interface and PC interface in the generator as well as Bucky suitable to Flat Panel Detector.
• DRGEM’s GXR X-ray system is equipped with a high frequency X-ray generator which consistently
produces high quality images based on high quality X-ray output with a very small kV ripple and accurate mA and timer control.
• GXR X-ray system is designed with complete consideration for both operator and patient comfort, and specially designed for minimizing electrical lock noise.
• Experience the quality, durable and user-friendly operation for all applications with the GXR X-ray system!

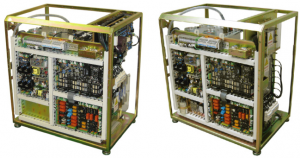

HF X-Ray Genarators

Standard: GXR

DRGEM3

32kW, 40kW, 52kW, 68kW, 82kW
400mA, 500mA, 630mA, 800mA, 1000mA

Internal UPS Mounted: GXR-U

DRGEM4

32kW, 40kW
400mA, 500mA

Capacitor Assisted: GXR-C

DRGEM5

32kW, 40kW
400mA, 500mA

Veterinary DR System

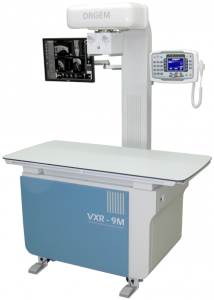

Models: VXR-6M/9MDRGEM6

• Excellent image quality
• Easy operation by Seamless work flow and all controlled by computer
• Cost effective digital solution with 16-bit wide dynamic range
• Eliminating the need for darkroom, processor, chemicals and film
• Trustworthy x-ray source
• High quality x-ray tube assembly and High voltage cable
• High frequency x-ray generator with worldwide reputation and performance
• X-ray apparatus with the beautiful exterior including movable 4-way tabletop
• High resolution grid for digital radiography
• X-ray collimator with lamp timer
• High performance workstation with 20” LCD monitor
• Additional diagnostic 20” LCD monitor

Detector Options
CCD 6M pixels – with GOS
CCD 9M pixels – with GOS
CCD 9M pixels – with CsI
CCD 16M pixels – with CsI
Flat Panel Detector – 9M pixels

Genoray Products

Conventional Mammography

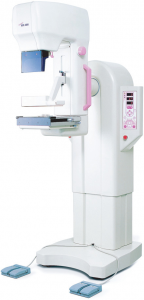

MX-600

genoray1

MX-600 is a premium mammography system from GENORAY with technology from a leader in Mammography. MX-600 is designed compactly for easy install and operation.
• Stable Output by the Inverter System
• Full AEC Mode ( Auto KV)
• Auto Standard exposure Positioning (ASP)
• Micro Processor Control Compression System
• Auto Release Compression After Exposure
• High Performance Dual Focus System
• Highly Sensitive Fiber Grid Bucky Device
• 19 Step Density Control
• 2 Precise Collimation Formats





MX-300genoray2

MX-300 is a mammography system from GENORAY with technology from a leader in Mammography. MX-600 is designed compactly for easy install and operation.
• Stable Output by the Inverter System
• Full AEC Mode ( Auto KV)
• Auto Release Compression After Exposure
• High Performance Dual Focus System
• Highly Sensitive Fibre Grid Bucky Device
• 19 Step Density Control
• 2 Precise Collimation Formats
